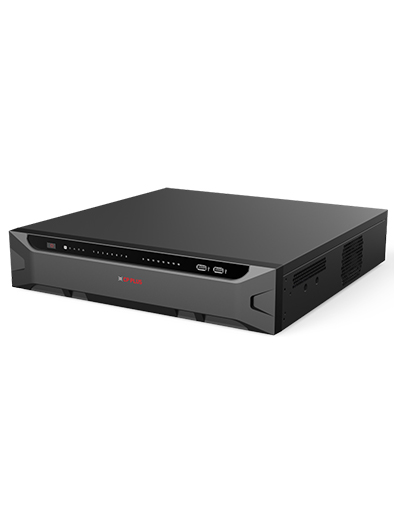

Overview: The CP Plus CP-UNR-4K564R8-FI is a high-performance 64-channel AI-enabled Network Video Recorder (NVR) designed for large-scale surveillance systems. With advanced AI capabilities, robust storage options, and support for high-resolution video, it is ideal for enterprise-level security applications.

Key Features:

64-Channel IP Camera Input: Supports up to 64 IP cameras, accommodating extensive surveillance setups.

High Bandwidth Capacity: Handles up to 384 Mbps for incoming, recording, and outgoing data streams.

Advanced Video Compression: Supports Instastream, H.265, H.264+, H.264, and MJPEG codecs for efficient storage and streaming.

AI by Recorder:

2-channel face detection and recognition.

Up to 20 face databases with 20,000 face images.

4-channel perimeter protection.

8-channel Smart Motion Detection (SMD) Plus.

AI by Camera:

Face detection and recognition.

Perimeter protection.

SMD Plus.

Metadata analysis.

Automatic Number Plate Recognition (ANPR).

Stereo analysis.

Heat map generation.

People counting.

Storage Capacity: Supports up to 8 SATA hard drives, each up to 20TB, allowing for extensive video storage.

RAID Support: Compatible with RAID 0/1/5/6/10 configurations for data redundancy and performance.

Video Output: Equipped with 2 HDMI and 2 VGA ports, supporting resolutions up to 3840 × 2160.

User Interface: Accessible via web interface and local GUI for flexible management.

Mobile & CMS Support: Compatible with iCMOB and gCMOB mobile applications, and KVMS Pro Lite CMS software for centralized monitoring.

Technical Specifications:

Processor: Industrial-grade processor.

Operating System: Embedded LINUX.

Decoding Capability:

AI Disabled: Up to 32 channels at 1080p@30fps.

AI Enabled: Up to 24 channels at 1080p@30fps.

Video Display Split: Main screen: 1/4/8/9/16/25/36/64; Sub screen: 1/4/8/9/16.

Face Detection Performance:

By Recorder: 2 channels, up to 12 face images per second per channel.

By Camera: Up to 16 channels.

Face Database Capacity: Up to 20 databases with a total of 20,000 images.

Power Supply: AC 100~240V, 50/60 Hz.

Power Consumption: Maximum 16.7W (without HDD).

Operating Temperature: -10°C to +55°C.

Dimensions: 440mm × 450.1mm × 95mm.

Weight: 6.55 kg (without HDD).

Applications:

Enterprise-level surveillance systems.

Critical infrastructure monitoring.

Large commercial complexes.

City surveillance and traffic management.

Note: Product specifications are subject to change without prior notice.

System Overview The CP Plus this Series of NVRs have been meticulously designed for providing you with upgraded performance and higher recording quality in your IP video surveillance solution. The robust processor that has been inculcated in this NVR lets you enjoy 4K resolution and brings out every little detail from the picture in a clear view. This NVR is being used worldwide at a variety of places because of its easy-to-install design. This NVR also supports the features of open architecture that enable multi-user access and is also compatible with ONVIF 2.4 protocol which makes it interoperable with 4K cameras. Functions ANPR by Camera The automatic number plate recognition technology is being widely used these days as this enables accurate, automatic reading of every vehicle’s number plate that is crossing a border or an entrance and then automatically runs that number through the system to detect if the vehicle should be allowed to enter or not.

CP-UNR-4K564R8-FI 64Ch. AI Network Video Recorder • Up to 64 Channel IP camera input • Max. 384 Mbps incoming/recording/outgoing bandwidth • Instastream, H.265, H.264+, H.264, MJPEG codec decoding • AI by Recorder: 2 Channel face detection and recognition, up to 20 face databases and 20,000 face images, 4 Channel perimeter protection, 8 Channel SMD Plus • AI by Camera: Face detection and recognition, Perimeter protection, SMD Plus, Metadata, ANPR, Stereo analysis, Heat map, People counting • Support 8 SATA HDDs up to 20TB Each, 4 USB Ports (2 front USB 2.0 ports, 2 rear USB 3.0 ports) • Support RAID 0/1/5/6/10 • Support N+M cluster • Mobile Software: iCMOB, gCMOB • CMS Software: KVMS Pro Lite

Smart Motion Detection (SMD Plus) CPPLUS has introduced Smart Motion Detection, AI-based SMD, which use an advanced algorithm to differentiate human and vehicular shapes within a scene and send alarms only when a person or vehicle is detected. gCMOB/ iCMOB Designed to allow users to access and control live streaming from CP PLUS IP Cameras, DVRs/ NVRs and Video Door Phones, the CP PLUS gCMOB/ iCMOB application offers a host of features such as Easy GUI, up to 16 live viewing split-ups; InstaOn cloud support; Playback; digital zoom ins; two-way talk, and more. KVMS Pro Lite The KVMS Pro Lite is a hybrid security management software that allows the management of various surveillance devices such as cameras, DVRs/ NVRs, encoders/ decoders, etc. It is released with the surveillance hardware and exclusively supports CP PLUS devices. About CP PLUS Face Detection With the help of the deep learning algorithm that is used in this technology, people can easily be detected, tracked, recorded, and captured. It takes only a second to detect one human face. Face detection is useful in cameras to help with auto-focus. This technology is mainly used to identify the presence of a human face. Instastream This camera has been designed with the latest and most efficient innovation among the standard video compression designs. Smart encoding algorithms developed by CP PLUS help in saving up to 70% more bandwidth than H.265 along with making it more beneficial for minimizing bandwidth and storage costs. It enhances video coding efficiency while providing high resolution and the rate of frame in the video using Intelligent Region Perception to detect motion in each frame. The brand that is on its way to lead the world when it comes to the security and surveillance industry, CP PLUS, keeps bombarding the market with the most reliable range of products that have been designed carefully and methodically to automate the whole surveillance and security process, no matter how big your premises are. It was the initiative to help the public in the area where they are the most vulnerable and to empower the sense of safety in our hearts that had conceptualized CP PLUS. And embarking on its mission to make the world a safer and more secure place has taken the brand's journey to unprecedented levels even when compared to international competitors. C

Feature Specification Processor Industrial-grade processor IP Camera Input 64 Channel Operating System Embedded LINUX User Interface Web, Local GUI Video Output 2 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 2 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous video source output for HDMI1 and HDMI2 Simultaneous video source output for VGA1 and HDMI1 Simultaneous video source output for VGA2 and HDMI2 Video Compression Instastream, H.265, H.264+, H.264, MJPEG Decoding Capability AI disabled: 2 Channel 32 MP@25 fps, 2 Channel 24 MP@25 fps, 4 Channel 16 MP@30 fps, 5 Channel 12 MP@30 fps, 8 Channel 8 MP@30 fps, 10 Channel 6 MP@30 fps, 12 Channel 5 MP@30 fps, 16 Channel 4 MP@30 fps, 32 Channel 1080p@30 fps AI enabled: 1 Channel 32 MP@25 fps, 1 Channel 24 MP@25 fps, 2 Channel 16 MP@30 fps, 4 Channel 12 MP@30 fps, 6 Channel 8 MP@30 fps, 8 Channel 6 MP@30 fps, 8 Channel 5 MP@30 fps, 12 Channel 4 MP@30 fps, 24 Channel 1080p@30 fps AI by NVR Face detection, Face recognition, Perimeter protection, SMD Plus AI by Camera Face detection, Face recognition, Video metadata (Human, Motor vehicles, Non-motor vehicles), Perimeter protection, SMD Plus, Stereo analysis, Crowd distribution, People counting, ANPR, Vehicle density, Heat map IntelliCheck AI by Camera + Recorder Max. 32 Channel, 1 combined event per Channel/s Resolution 32 MP, 24 MP, 16 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 2 MP, 720p, 960p, D1, CIF, QCIF Network Bandwidth AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing
